Plastic rakes and scraps used to scrape the surface of concrete roads to avoid the old plastic damaged to rinse the new side of the road in the maintenance and repair of roads.
Cutting drum
Cutting width: 500-600mm
Cutting depth: 0 - 210mm
Milling line space: in (mm) 0.59 (15) 0.59 (15)
Drum diameter: (700) mm
Number of cutting teeth: 58-64
Speed: 115/130 / 145rpm
Engine
Manufactured by: Deutz TCD 2012 Deutz TCD 2012
Water cooled
4 cylinders
Engine power: 125 kW
Speed: 2100 rpm
Key figures
Working speed: 0-30m / min
Movement speed: 0-6km / min
Fuel tank: 230L
Conveyor capacity: 85M3 / hour
Belt width: 400mm
Total weight (without conveyor): 8400Kg

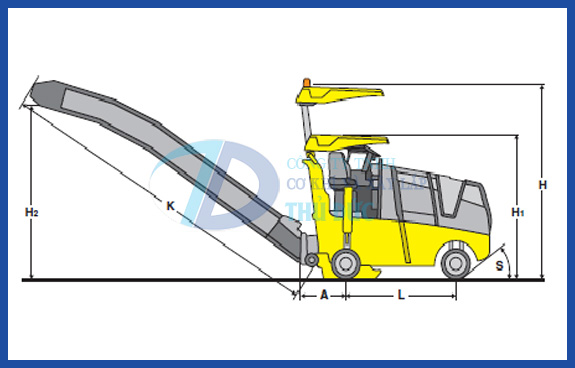

Dimensions: 3735x1635x2750
